- Coronary Product

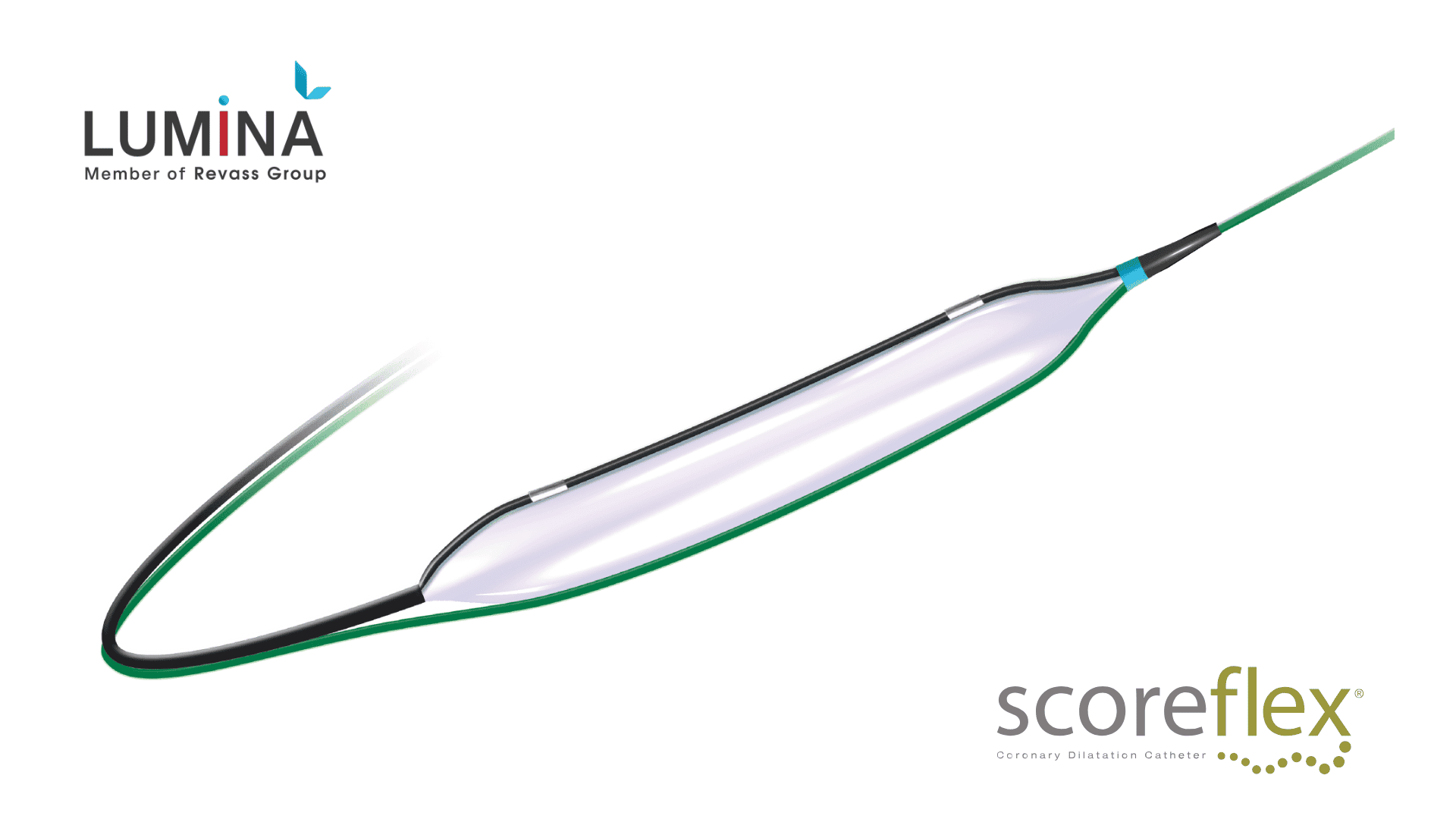

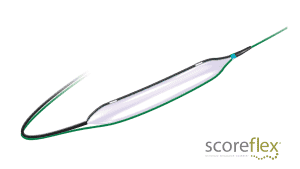

Scoreflex Coronary Dilatation Catheter
Focused Force Angioplasty for
Controlled Lesion Preparation
Focused Force Angioplasty for Safe and Controlled Dilatation
Scoreflex is a focused force dilatation balloon with a dual-wire system which creates a focal stress pattern to facilitate safe and controlled plaque modification at lower resolution pressure.

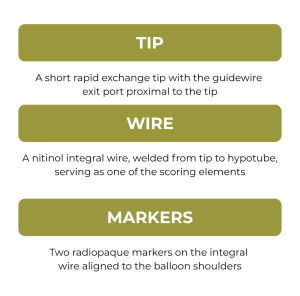

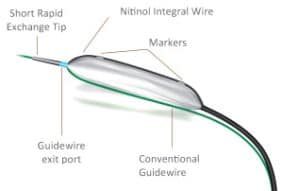

Scoreflex Construction
The (conventional) guidewire exits proximal to the tip and acts as the second scoring element
Catheter for excellent deliverability
Continuous hub-to-tip metallic construction for enhanced pushability, with a
combination of hydrophilic and hydrophobic coatings to minimize friction
Hydro-X hydrophilic coating is a water-absorbing, very slippery coating that reduces friction during lesion crossing
Invio hydrophobic coating is a water-repelling, slippery coating that reduces guidewire friction
Crossing profile
Low Dilatation Pressure, Big Dilatation Effect

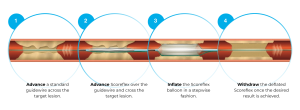

Scoreflex is a focused force dilatation balloon that comes with a dual wire system which enables effective dilatation under lower inflation pressure. For optimal results, a gradual step-up inflation protocol should be adopted
Applications
- Lesion preparation for stents, scaffolds, drug-coated balloons
- Calcified and fibrotic lesions
- Ostial lesions
- Bifurcation lesions
- Long diffused lesions
- Small lesions without need of stenting
- In-stent restenosis
-
-
Schematic
Available Configurations
| Balloon Diameter (Ø mm) | Balloon Working Length (mm) | ||
| 10 | 15 | 20 | |
| 02.00 | ● | ● | ● |
| 02.05 | ● | ● | ● |
| 03.00 | ● | ● | ● |
| 03.05 | ● | ● | ● |
| 04.00 | ● | ● | ● |
